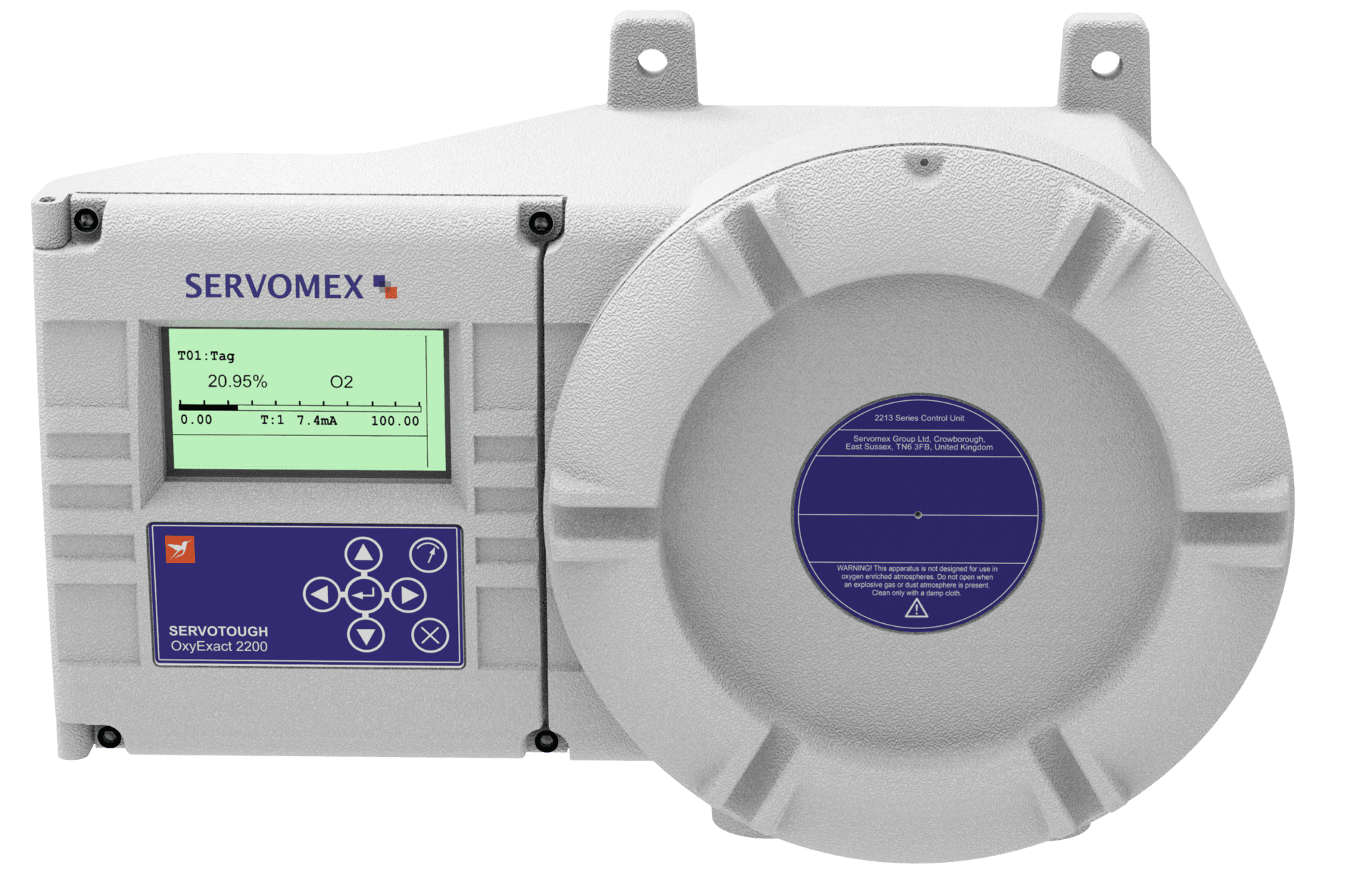

The SERVOTOUGH OxyExact 2200 provides hazardous area oxygen analysis

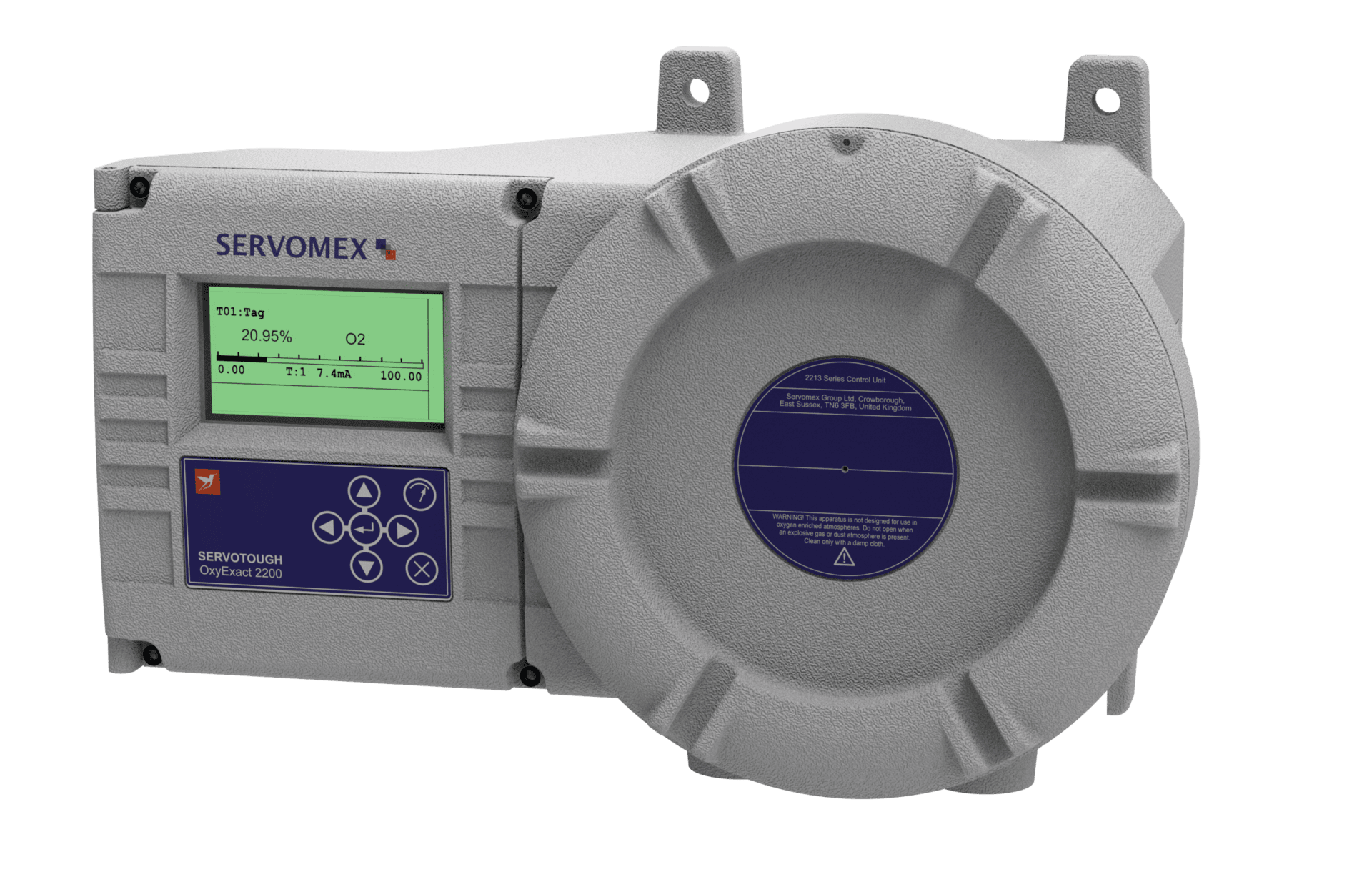

The high-specification OxyExact 2200 O₂ analyzer offers an unrivaled combination of precision, flexibility and performance for optimum process and safety control. The OxyExact 2200 can be configured with a hazardous area control unit with up to six transmitters.
Preconfigured to base-level requirements to meet the challenges of most hazardous area applications, this single-compartment control unit is suitable for most process oxygen measurement applications
Get a gas analyser ready to meet the specific needs of your unique applications with a user-configured option.
If one of our standard variants doesn’t match your requirements, we offer custom configurations to match your process precisely, with options including Hastelloy sample pipework and corrosive purges.
Get in touch with our experts and tell us what you need to overcome your process challenges. We’ll create, configure, and calibrate your gas analyser to ensure it performs exactly as you expect, delivering key benefits and premium performance.

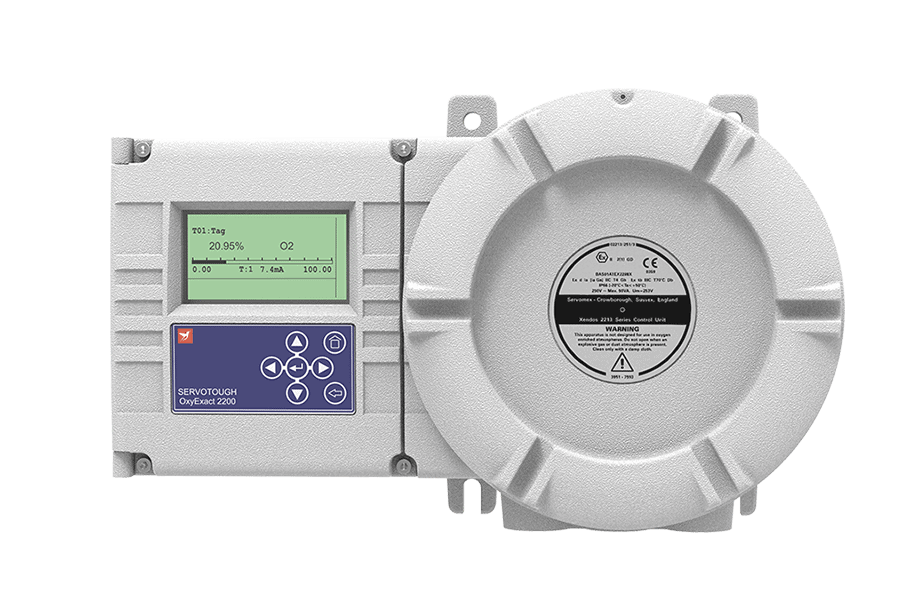

Preconfigured to meet base-level requirements for most demanding hazardous area applications, this control unit has an intrinsically safe section to protect its screen and keypad
Get a gas analyser ready to meet the specific needs of your unique applications with a user-configured option.
If one of our standard variants doesn’t match your requirements, we offer custom configurations to match your process precisely, with options including Hastelloy sample pipework and corrosive purges.
Get in touch with our experts and tell us what you need to overcome your process challenges. We’ll create, configure, and calibrate your gas analyser to ensure it performs exactly as you expect, delivering key benefits and premium performance.
Preconfigured to base-level requirements, this high-temperature transmitter meets most general oxygen measurement needs
Preconfigured to meet medium-level requirements, this high-temperature transmitter is suitable for most mid-level process measurement needs
Get a gas analyser ready to meet the specific needs of your unique applications with a user-configured option.
If one of our standard variants doesn’t match your requirements, we offer custom configurations to match your process precisely, with options including Hastelloy sample pipework and corrosive purges.
Get in touch with our experts and tell us what you need to overcome your process challenges. We’ll create, configure, and calibrate your gas analyser to ensure it performs exactly as you expect, delivering key benefits and premium performance.
Preconfigured to base-level requirements, this transmitter meets most general oxygen measurement needs
Preconfigured to meet medium-level requirements, this transmitter is suitable for most mid-level process measurement needs
This transmitter is fully configured to met all typical process measurement requirements
Get a gas analyser ready to meet the specific needs of your unique applications with a user-configured option.
If one of our standard variants doesn’t match your requirements, we offer custom configurations to match your process precisely, with options including Hastelloy sample pipework and corrosive purges.
Get in touch with our experts and tell us what you need to overcome your process challenges. We’ll create, configure, and calibrate your gas analyser to ensure it performs exactly as you expect, delivering key benefits and premium performance.
It’s easy to find the product you need for your application with Servomex
Get in touch to tell us what you need and the application you plan to use it for
Our expert team will help you select the right product package, ensuring you have the accessories and support to get the best performance from your analyzer
Your analyzer will be assembled in one of our state-of-the-art engineering centers and rapidly dispatched to your site
The OxyExact 2200 combines high precision Paramagnetic O₂ sensing technology into a flexible and robust safety-enhanced design, optimized to meet the needs of demanding process monitoring applications like feedstock purity testing and clean up, hydrogen and chlorine production, solvent recovery and oxidation control processes, ethylene oxide (EO) and ethylene dichloride (EDC) production.
It uses an innovative three-enclosure system that facilitates simplified and versatile sampling of any flammable gas up to 100% O₂ (oxygen enriched) – with no need for pre-sample drying – dramatically reducing ongoing costs.
Up to six analyzers can be linked to a single control unit, ensuring the high performance and adaptability required by the most dangerous process control environments.
When you work in hazardous area process monitoring applications, a highly accurate, safe O₂ analytical solution that samples any flammable gas mixture up to 100% O₂ is crucial. No matter what your monitoring requirement, you need an analytical solution that offers operational flexibility, exceptional safety and the opportunity to reduce costs. We don’t believe you should have to compromise.
The OxyExact’s sophisticated, flexible design ethos ensures it can be precisely configured to a wide range of application environments.
A single intuitive use controller can be situated in either a safe area or hazardous area, linking to up to six transmitters, permitting simplified set-up and ongoing maintenance through auto-validation and calibration procedures (direct interaction can be faciliated by optional software). The OxyExact also features a three enclosure design that allows the flexibility to measure flammable gases for 0-100% O₂, helping to reduce costs by removing the need for purge gases.
The OxyExact uses Paramagnetic sensing technologies to deliver highly stable and accurate O₂ measurements. Safety-enhanced design and optional patented flow alarm and pressure compensation ensures sampling versatility – including flare stack applications – that is demanded by your application needs. In addition, Ethernet or RS485 Modbus protocols deliver enhanced communications capabilities. All these aspects combine to make the OxyExact an industry leading solution for O₂ analysis.
With its flexible design and the capability to link six transmitters to one control unit, the OxyExact 2200 is easy to integrate into gas analysis systems. Contact our expert team to see how we can manage and engineer your systems project from start to finish.
Use the table below to find the right analyzer variant for your application.
CONFIGURATION | |
---|---|
OxyExact 2210 VARIANTS: | We have one pre-configured 2210 OxyExact build (SV01) to cover the most common chosen option configurations to enable a quick turnaround from specification to delivery. |

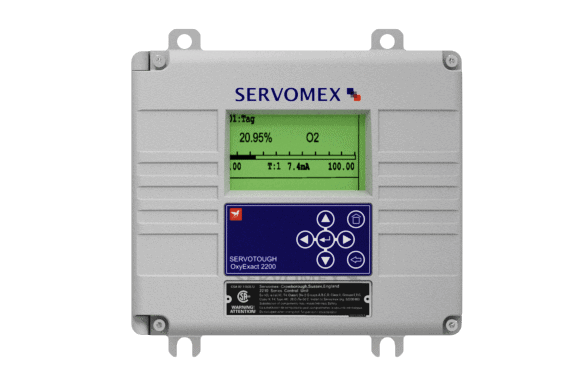

Standard Variant 1 (2210SV01) | The pre-configured standard variant 1 base level configuration, including the mA output and relay option card, for general controller requirements. |
User Configured (2210UC) | Other analyzer configurations not covered by one of the above standard variant configurations, including corrosive purge options. |

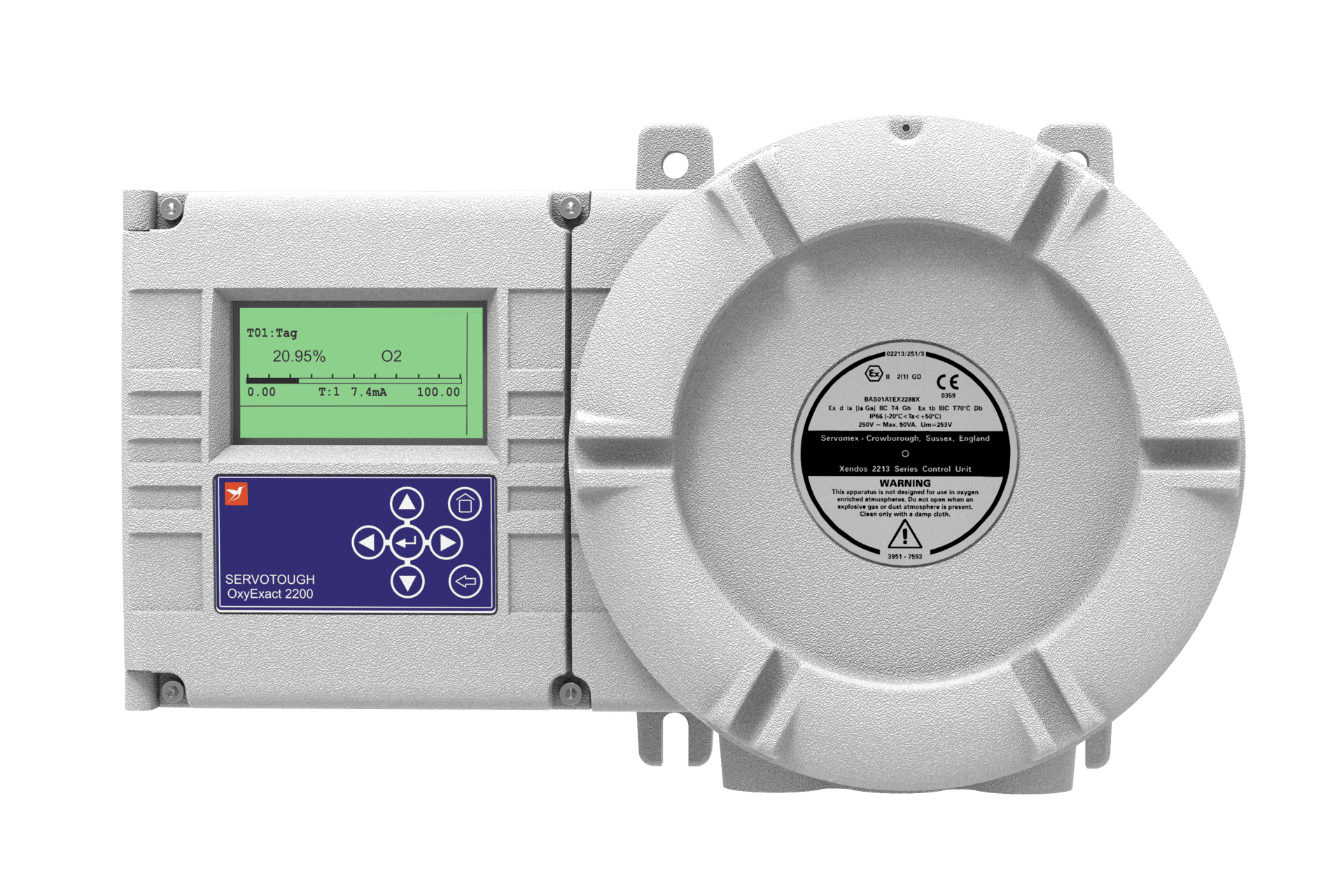

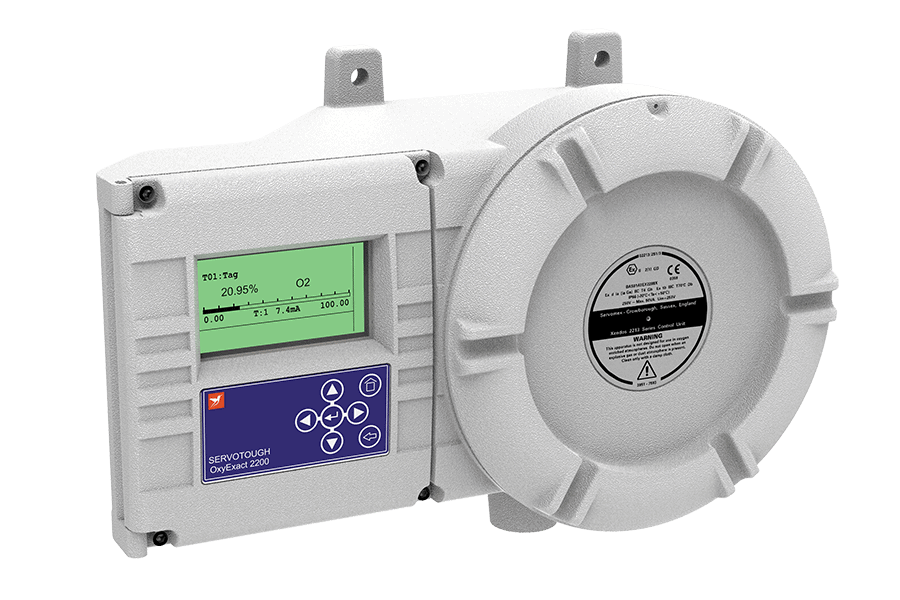

OxyExact 2213 VARIANTS: | We have one pre-configured 2213 OxyExact build (SV01) to cover the most common chosen option configurations to enable a quick turnaround from specification to delivery. |
Standard Variant 1 (2213SV01) | The pre-configured standard variant 1 base level configuration, including the mA output and relay option card, for general controller requirements. |
User Configured (2213UC) | Other controller configurations not covered by one of the above standard variant configuration, including digital input option card and ethernet communications option. |
OxyExact VARIANT | ||||
---|---|---|---|---|
Controller certification | 2210SV01 | 2210UC | 2213SV01 | 2213UC |
ATEX/UKEX Cat 2GD Z2-Z22 (Europe and Great Britain) | ||||
FM Class 1 Div 2 Zone 2 (USA) | ||||
CSA Class 1 Div 2 Zone 1 (Canada) | ||||
CSA Class 1 Div 2 Zone 2 (Canada) | ||||
IEC Ex Zone 2 - Zone 22 (International) | ||||
CML Z1-Z21 (Japan) | ||||
Supply voltage | 2210SV01 | 2210UC | 2213SV01 | 2213UC |
100 - 120Vac | ||||
220 - 240Vac | ||||
Operator manual | 2210SV01 | 2210UC | 2213SV01 | 2213UC |
English | ||||
Service manual | 2210SV01 | 2210UC | 2213SV01 | 2213UC |
Not required | ||||
Required - English | ||||
Electrical entry option | 2210SV01 | 2210UC | 2213SV01 | 2213UC |
3/4" & 1/2" NPT (Standard option) | ||||
M20 adaptor kit | ||||
PG13.5 adaptor kit | ||||
Not required | ||||
mA output board | ||||
Relay board | ||||
Digital input board | ||||
Slot 2 Module Option | 2210SV01 | 2210UC | 2213SV01 | 2213UC |
Not required | ||||
mA output board | ||||
Relay board | ||||
Digital input board | ||||
Slot 3 Module Option | 2210SV01 | 2210UC | 2213SV01 | 2213UC |
Not required | ||||
mA output board | ||||
Relay board | ||||
Digital input board | ||||
Slot 4 Module Option | 2210SV01 | 2210UC | 2213SV01 | 2213UC |
Not required | ||||
mA output board | ||||
Relay board | ||||
Digital input board | ||||
Data communication | 2210SV01 | 2210UC | 2213SV01 | 2213UC |
Modbus protocol (RS485) | ||||
Modbus protocol Ethernet | ||||
Enclosure Option | 2210SV01 | 2210UC | 2213SV01 | 2213UC |
Blanked | ||||
Breather | ||||
Controller Mounting | 2210SV01 | 2210UC | 2213SV01 | 2213UC |
Wall | ||||
Label tag no. | 2210SV01 | 2210UC | 2213SV01 | 2213UC |
Not required | ||||
Required |
OxyExact VARIANT | 2210SV01 | 2210UC | 2213SV01 | 2213UC | |
---|---|---|---|---|---|
Controller certification | ATEX/UKEX Cat 2GD Z2-Z22 (Europe and Great Britain) | ||||
FM Class 1 Div 2 Zone 2 (USA) | |||||
CSA Class 1 Div 2 Zone 1 (Canada) | |||||
CSA Class 1 Div 2 Zone 2 (Canada) | |||||
IEC Ex Zone 2 - Zone 22 (International) | |||||
CML Z1-Z21 (Japan) | |||||
Supply voltage | 100 - 120Vac | ||||
220 - 240Vac | |||||
Operator manual | English | ||||
Service manual | Not required | ||||
Required - English | |||||
Electrical entry option | 3/4" & 1/2" NPT (Standard option) | ||||
M20 adaptor kit | |||||
PG13.5 adaptor kit | |||||
Slot 1 Module Option | Not required | ||||
mA output board | |||||
Relay board | |||||
Digital input board | |||||
Slot 2 Module Option | Not required | ||||
mA output board | |||||
Relay board | |||||
Digital input board | |||||
Slot 3 Module Option | Not required | ||||
mA output board | |||||
Relay board | |||||
Digital input board | |||||
Slot 4 Module Option | Not required | ||||
mA output board | |||||
Relay board | |||||
Digital input board | |||||
Data communication | Modbus protocol (RS485) | ||||
Modbus protocol Ethernet | |||||
Enclosure Option | Blanked | ||||
Breather | |||||
Controller Mounting | Wall | ||||
Label tag no. | Not required | ||||
Required |
Use the table below to find the right analyzer variant for your application.
CONFIGURATION | |
---|---|
OxyExact 2222H VARIANTS: | We have two pre-configured 2222H OxyExact builds (SV01 &SV02) to cover the most common chosen option configurations to enable a quick turnaround from specification to delivery. |

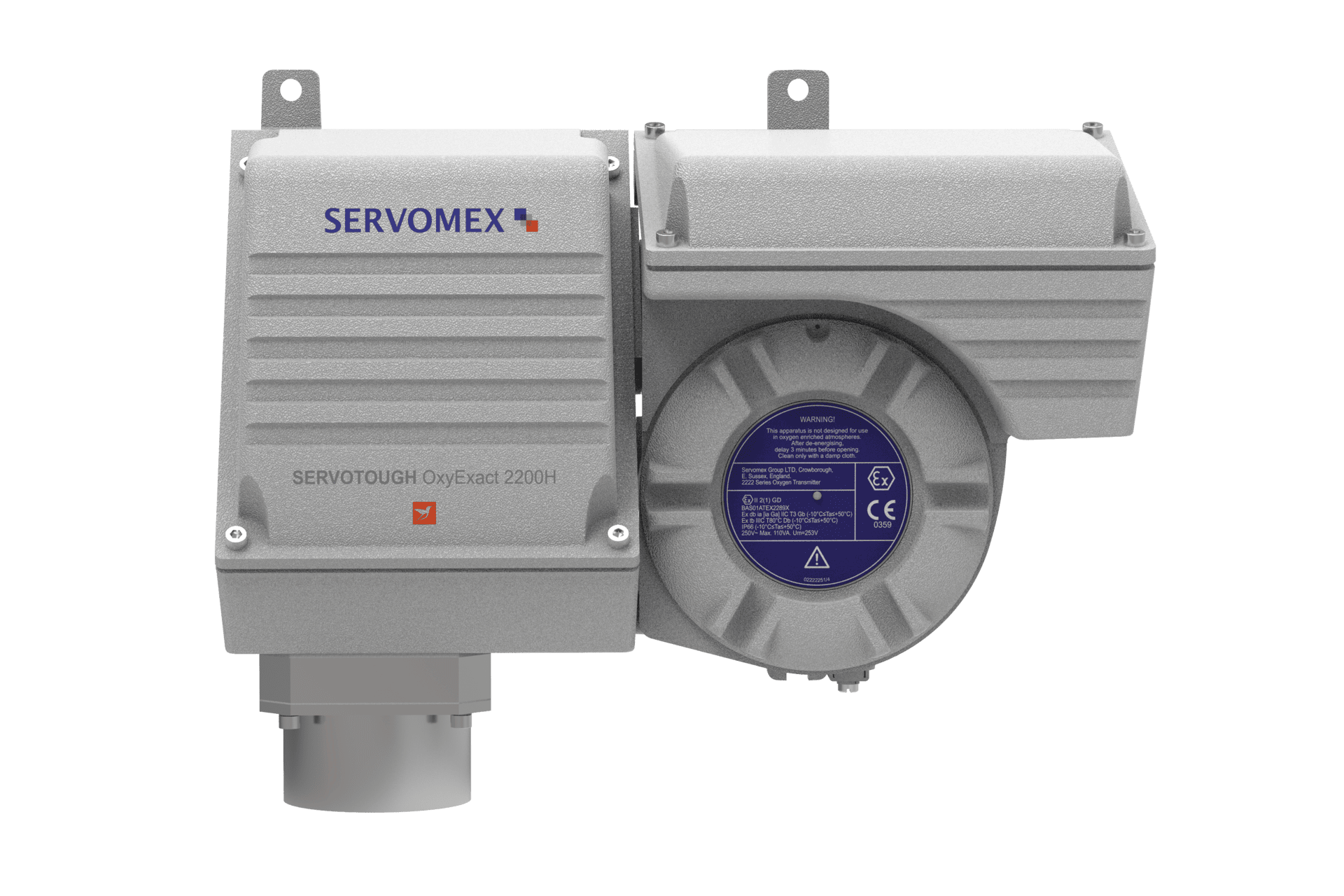

Standard Variant 1 (2222HSV01) | The pre-configured standard variant 1 base level configuration, including the high-pressure solvent resistant transducer, for general oxygen measurement requirements. |
Standard Variant 2 (2222HSV02) | The pre-configured standard variant 2 mid-level configuration, adding internal flow alarm to the SV01 build, covering mid to high level process measurement needs. |
User Configured (2222HUC) | Other analyzer configurations not covered by one of the above standard variant configurations, including corrosive purge options. |
OxyExact 2223 VARIANTS: | We have three pre configured 2223 OxyExact builds (SV01, SV02 and SV03) to cover the most common chosen option configurations to enable a quick turnaround from specification to delivery. |

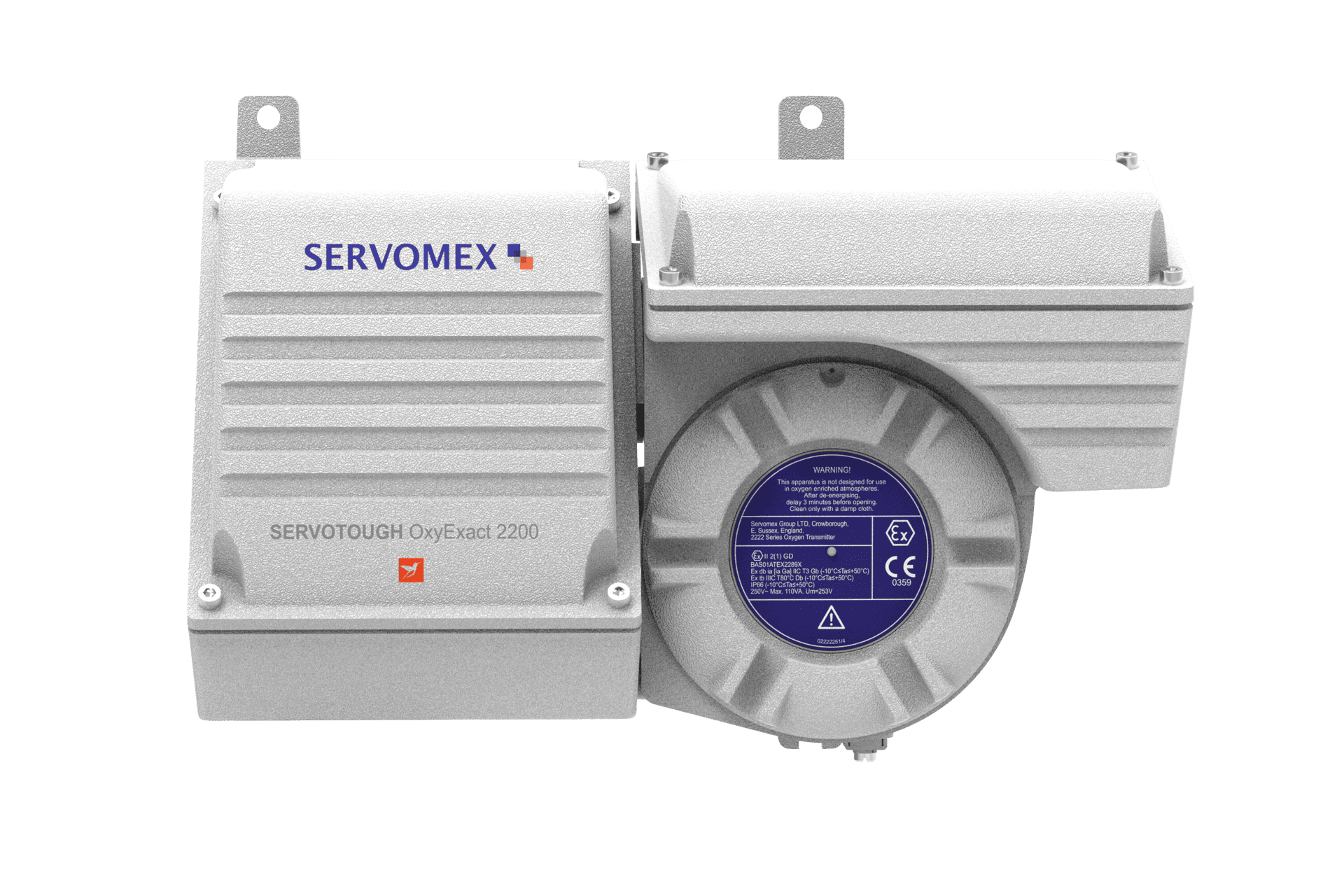

Standard Variant 1 (2223SV01) | The pre-configured standard variant 1 base level configuration, including the high pressure solvent resistant transducer, for general oxygen measurement requirements. |
Standard Variant 2 (2223SV02) | The pre-configured standard variant 2 mid level configuration, adding internal flow alarm to the SV01 build, covering mid level process measurement needs. |
Standard Variant 3 (2223SV03) | The pre-configured standard variant 3 full configuration, adding pressure compensation to the SV02 mid level build, covering all your process measurement needs. |
User Configured (2223UC) | Other analyzer configurations not covered by one of the above standard variant configurations, including Hastelloy sample pipework and corrosive purge options. |
OxyExact VARIANT | |||||||
---|---|---|---|---|---|---|---|
OxyExact VARIANT | 2222HSV01 | 2222HSV02 | 2222HUC | 2223SV01 | 2223SV02 | 2223SV03 | 2223UC |
ATEX/UKEX Cat 2GD Z1-Z21 (Europe and Great Britain) | |||||||
FM Class 1 Div 1 Zone 1 (USA) | |||||||
CSA Class 1 Div 1 Zone 1 (Canada) | |||||||
IEC Ex Zone 1 - Zone 21 (International) | |||||||
CML Z1-Z21 (Japan) | |||||||
Sample temperature | 2222HSV01 | 2222HSV02 | 2222HUC | 2223SV01 | 2223SV02 | 2223SV03 | 2223UC |
110ºC set point (T3 rating) | |||||||
Supply voltage | 2222HSV01 | 2222HSV02 | 2222HUC | 2223SV01 | 2223SV02 | 2223SV03 | 2223UC |
100 - 120Vac | |||||||
220 - 240Vac | |||||||
Operator manual | 2222HSV01 | 2222HSV02 | 2222HUC | 2223SV01 | 2223SV02 | 2223SV03 | 2223UC |
English | |||||||
Service manual | 2222HSV01 | 2222HSV02 | 2222HUC | 2223SV01 | 2223SV02 | 2223SV03 | 2223UC |
Not required | |||||||
Required - English | |||||||
Electrical entry option | 2222HSV01 | 2222HSV02 | 2222HUC | 2223SV01 | 2223SV02 | 2223SV03 | 2223UC |
3/4" & 1/2" NPT (Standard option) | |||||||
M20 adaptor kit | |||||||
PG13.5 adaptor kit | |||||||
Sample pipework material | 2222HSV01 | 2222HSV02 | 2222HUC | 2223SV01 | 2223SV02 | 2223SV03 | 2223UC |
Stainless steel | |||||||
Hastelloy | |||||||
Sample cell type | 2222HSV01 | 2222HSV02 | 2222HUC | 2223SV01 | 2223SV02 | 2223SV03 | 2223UC |
Standard (Viton o-rings) | |||||||
High pressure solvent resistant (Chemraz and PTFE o-rings) | |||||||
Sample flow | 2222HSV01 | 2222HSV02 | 2222HUC | 2223SV01 | 2223SV02 | 2223SV03 | 2223UC |
250ml/min (100 minimum to 250ml/min maximum) | |||||||
1l/min (0.8 minimum to 1.2l/min maximum). | |||||||
Internal sample inlet filter | 2222HSV01 | 2222HSV02 | 2222HUC | 2223SV01 | 2223SV02 | 2223SV03 | 2223UC |
Not required | |||||||
Fitted | |||||||
Flow alarm | 2222HSV01 | 2222HSV02 | 2222HUC | 2223SV01 | 2223SV02 | 2223SV03 | 2223UC |
Not required | |||||||
Fitted, internal | |||||||
Pressure compensation | 2222HSV01 | 2222HSV02 | 2222HUC | 2223SV01 | 2223SV02 | 2223SV03 | 2223UC |
Not required | |||||||
Fitted, internal | |||||||
Sample inlet adaptor | 2222HSV01 | 2222HSV02 | 2222HUC | 2223SV01 | 2223SV02 | 2223SV03 | 2223UC |
Standard (1/8" NPT (F)) | |||||||
1/4" OD adaptor | |||||||
1/8" OD tubes | |||||||
6mm OD adaptor | |||||||
Corrosive sample purge | 2222HSV01 | 2222HSV02 | 2222HUC | 2223SV01 | 2223SV02 | 2223SV03 | 2223UC |
Not required | |||||||
Fitted | |||||||
Functional safety/SIL2 (Route 1H) requirement | 2222HSV01 | 2222HSV02 | 2222HUC | 2223SV01 | 2223SV02 | 2223SV03 | 2223UC |
Not required | |||||||
Required | |||||||
Required - English safety manual | |||||||
Label tag no. | 2222HSV01 | 2222HSV02 | 2222HUC | 2223SV01 | 2223SV02 | 2223SV03 | 2223UC |
Not required | |||||||
Required |
OxyExact VARIANT | 2222HSV01 | 2222HSV02 | 2222HUC | 2223SV01 | 2223SV02 | 2223SV03 | 2223UC | |
---|---|---|---|---|---|---|---|---|
ATEX/UKEX Cat 2GD Z1-Z21 (Europe and Great Britain) | ||||||||
FM Class 1 Div 1 Zone 1 (USA) | ||||||||
CSA Class 1 Div 1 Zone 1 (Canada) | ||||||||
IEC Ex Zone 1 - Zone 21 (International) | ||||||||
CML Z1-Z21 (Japan) | ||||||||
Sample temperature | 110ºC set point (T3 rating) | |||||||
Supply voltage | 100 - 120Vac | |||||||
220 - 240Vac | ||||||||
Operator manual | English | |||||||
Service manual | Not required | |||||||
Required - English | ||||||||
Electrical entry option | 3/4" & 1/2" NPT (Standard option) | |||||||
M20 adaptor kit | ||||||||
PG13.5 adaptor kit | ||||||||
Sample pipework material | Stainless steel | |||||||
Hastelloy | ||||||||
Sample cell type | Standard (Viton o-rings) | |||||||
High pressure solvent resistant (Chemraz and PTFE o-rings) | ||||||||
Sample flow | 250ml/min (100 minimum to 250ml/min maximum) | |||||||
1l/min (0.8 minimum to 1.2l/min maximum). | ||||||||
Internal sample inlet filter | Not required | |||||||
Fitted | ||||||||
Flow alarm | Not required | |||||||
Fitted, internal | ||||||||
Pressure compensation | Not required | |||||||
Fitted, internal | ||||||||
Sample inlet adaptor | Standard (1/8" NPT (F)) | |||||||
1/4" OD adaptor | ||||||||
1/8" OD tubes | ||||||||
6mm OD adaptor | ||||||||
Corrosive sample purge | Not required | |||||||
Fitted | ||||||||
Functional safety/SIL2 (Route 1H) requirement | Not required | |||||||
Required | ||||||||
Required - English safety manual | ||||||||
Label tag no. | Not required | |||||||
Required |
With its flexible and robust, safety-enhanced design, the OxyExact 2200 provides significant advantages for a range of demanding process applications.
The OxyExact 2200 can sample any flammable gas up to 100% O₂ with a pressure of up to 40psi.
Up to six transmitters can be linked to a single control unit, with easy device interaction and set-up.
No purge gas is required during measurement in flammable samples, while the resilient design ensures a long operational life, even in harsh conditions.
The OxyExact 2200 uses precision Paramagnetic sensing technology to meet demanding process O₂ monitoring requirements.
Gas | Measurement |
---|---|
Oxygen (O₂) | % |
Technologies
2210 control unit: 280 (W) x 290 (H) x 236mm (D)
2213 control unit: 490 (W) x 315 (H) x 236mm (D)
2222/2223 transmitter: 432 (W) x 303 (H) x 210mm (D)
2210 control unit: 10kg (22lbs)
2213 control unit: 25kg (55.1lbs)
2222/2223 transmitter: 16kg (35.3lbs)
“For in-depth specifications you’ll want to download our technical datasheet which includes information on technology, performance, operating environment, sample conditions and compliance along with technical drawings and top-level benefits and applications.”
“Download our complete resource pack for the OxyExact 2200. It has everything you need to learn about the features, benefits and performance of this high-specification oxygen analyzer.”
Learn more about the operation, installation and technical specifications of the OxyExact 2200. Download the manual and product brochure now.
Get more details on our high-specification oxygen analyzer for hazardous processes
Get more details on our high-specification oxygen analyzer for hazardous processes
Remove from basketA guide to using the wet gas sampling system with the OxyExact 2200

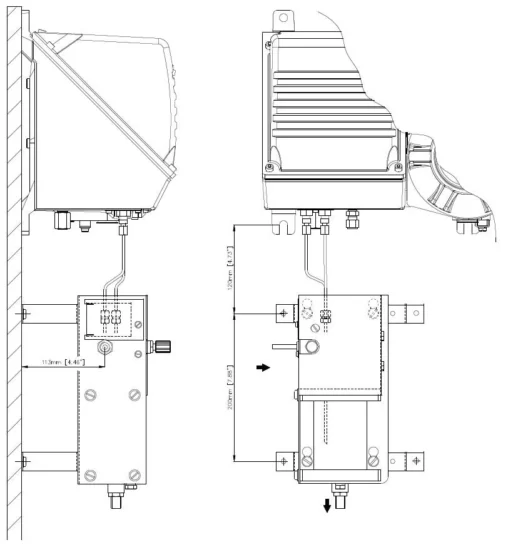

A guide to using the wet gas sampling system with the OxyExact 2200
Remove from basketSuitable for an extensive range of applications, the analyzer offers operational flexibility, high levels of safety.
Suitable for an extensive range of applications, the analyzer offers operational flexibility, high levels of safety.
Remove from basketDownload our list of high-quality spares for your SERVOTOUGH oxygen analyzer
Download our list of high-quality spares for your SERVOTOUGH oxygen analyzer
Remove from basketOur videos give you the chance to watch our products in action and hear from our experts. You can also see our analyzers unboxed, and find out more about our solutions for key applications
More Productive Pillar
Explore how Servomex can help you innovate and optimize operations.
Healthier Pillar
Learn how together we can protect people, processes, and environments with precision.
Cleaner Pillar
See how Servomex empower industries to reduce emissions and accelerate net-zero progress.
DF 500
See the difference the Gen 7 DF-500 series can make to quality control. These NanoTrace Oxygen Analyzers offers the lowest production detection limits for ultra-high-purity (UHP) gases, powered by our industry-leading coulometric sensor.
If you haven’t yet been convinced, then speak to our experts. They’ll give you the best, most knowledgeable explanation of our solutions, and help you find the one that’s most suitable for your application.
