Servomex delivers solutions to meet your TDI process needs
Servomex is an expert in the supply of analyzers and systems designed to meet all requirements of the TDI process, including process control, quality, and emission monitoring. Our turnkey solution for TDI gas analysis overcomes common process challenges such as gas cross-sensitivity, the highly toxic nature of the process, and detection of low levels of chlorine within the TDI product.

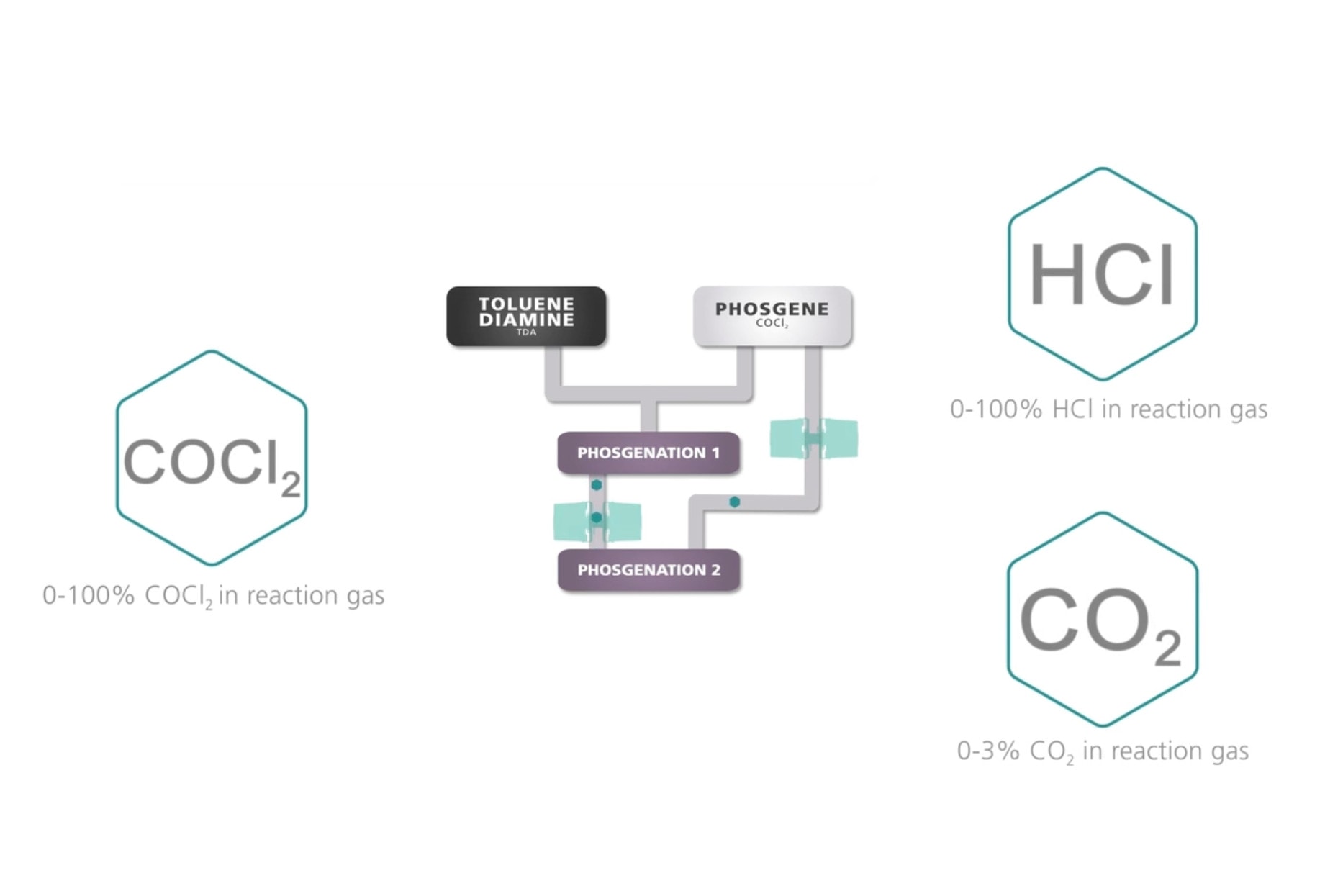

The synthesis of TDI is both complicated and hazardous. It starts with the nitration of toluene to dinitrotoluene, then the reaction of diaminotoluene and phosgene, proceeding to the distillation of the toluene diamine mixture, and finally the differentiation of the TDI product to produce the required useful isomers. The process combines a range of toxic, flammable, and corrosive components, including hydrogen, chlorine, and carbon monoxide.
The TDI process requires high levels of gas analysis for both process control and product purity throughout all three processes. A wide range of impurities and emissions must be accurately measured, including methane (CH4), oxygen (O2), water (H2O), carbon monoxide (CO), chlorine (Cl2), phosgene, and hydrogen chloride (HCl). This requires a highly flexible analytical solution that delivers safe and reliable measurements throughout the complex production process.
A highly flexible, high-performance analytical solution for a wide range of gases, the SERVOTOUGH SpectraExact 2500 uses Infrared and Gas Filter Correlation sensing technologies to deliver the real-time online monitoring needed in the harsh process conditions of TDI production. Fully certified for continuous measurement of flammable samples, the resilience and flexible measurement architecture of the SpectraExact 2500 meets a range of challenges, including overcoming gas cross-sensitivity, and successful detection of chlorine levels in the toxic environment.
We have a wide range of experience in supplying analytical systems for the TDI production process, delivering the accurate, reliable, and stable solutions your process needs.
Our deep applications knowledge allows our experts to advise you on the best solution for your process requirements, with gas analysis solutions to meet your specific plant conditions.
